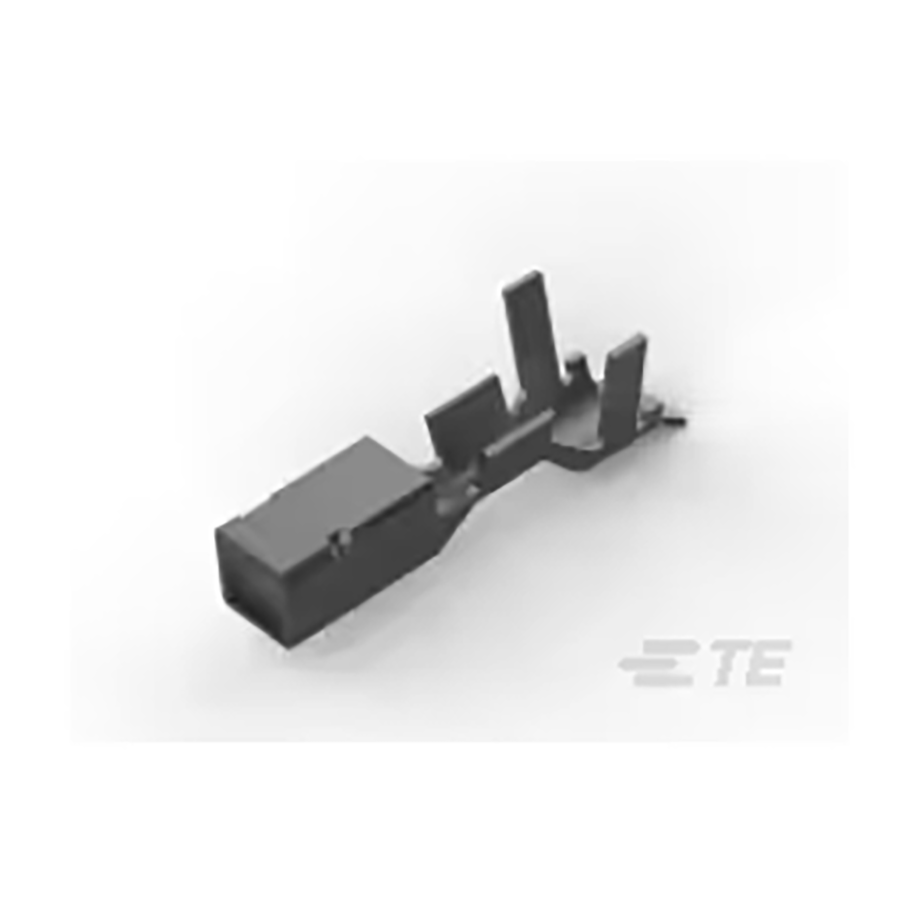

1376348-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376348-1
Datasheet:
Description:
IC and Component Sockets Cable Socket
| Parameter | Value |
|---|---|
| Length | 12.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Pre-Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Max Current Rating | 7 A |
| Approvals | CSA |
| Orientation | Straight |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Receptacle (Female) |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 24 AWG to 20 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Current Rating | 7 A |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 20 AWG |
| Insulation Diameter | 2.6924 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 21630
Distributors
pcbx
pcbxUnit Price$0.18090
Ext.Price$0.18090
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18090 | $0.18090 |
| 10 | $0.09045 | $0.90450 |
| 50 | $0.06958 | $3.47900 |
| 100 | $0.05352 | $5.35200 |
| 500 | $0.04117 | $20.58500 |
| 1000 | $0.03167 | $31.67000 |
| 3000 | $0.02436 | $73.08000 |
| 5000 | $0.02436 | $121.80000 |
| 10000 | $0.02376 | $237.60000 |
| 30000 | $0.02148 | $644.40000 |
| 50000 | $0.01941 | $970.50000 |
